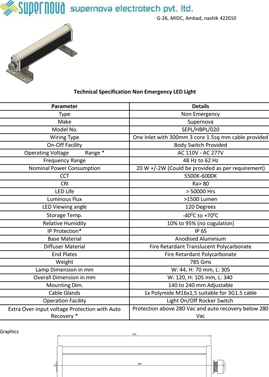

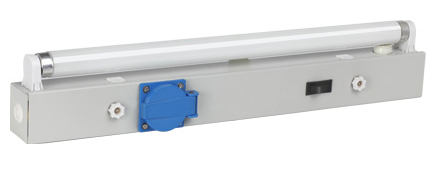

Industrial Lighting - Control Cabinet Light
| Type | Non Emergency |
| Make | Supernova |
| Model No. | SEPL/HBPL/020 |
| Wiring Type | One Inlet with 300mm 3 core 1.5sq mm cable provided |
| On-Off Facility | Body Switch Provided |
| Operating Voltage Range * | AC 110V - AC 277V |
| Frequency Range | 48 Hz to 62 Hz |
| Nominal Power Consumption | 20 W +/-2W (Could be provided as per requirement) |
| CCT | 5500K-6000K |
| CRI | Ra> 80 |
| LED Life | > 50000 Hrs |
| Luminous Flux | >1500 Lumen |
| LED Viewing angle | 120 Degrees |
| Storage Temp. | -40oC to +70o C |
| Relative Humidity | 10% to 95% (no cogulation) |
| IP Protection* | IP 65 |
| Base Material | Anodised Aluminium |
| Diffuser Material | Fire Retardant Translucent Polycarbonate |
| End Plates | Fire Retardant Polycarbonate |
| Weight | 785 Gms |

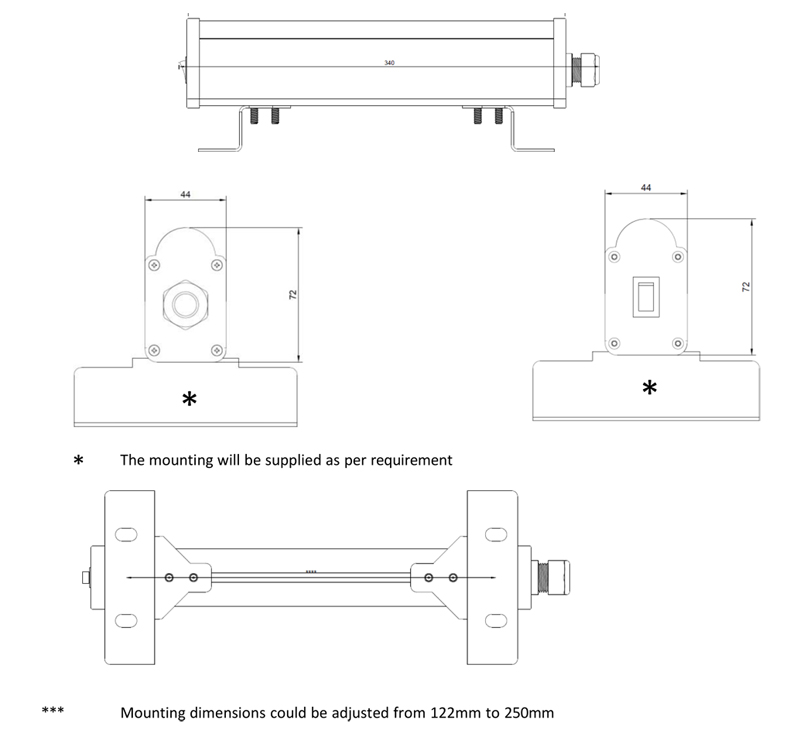

| Lamp Dimension in mm | W: 44, H: 70 mm, L: 305 |
| Overall Dimension in mm | W: 120, H: 105 mm, L: 340 |
| Mounting Dim. | 140 to 240 mm Adjustable |
| Cable Glands | 1x Polymide M16x1,5 suitable for 3G1.5 cable |
| Operation Facility | Light On/Off Rocker Switch |
| Extra Over-input voltage Protection with Auto Recovery * | Protection above 280 Vac and auto recovery below 280 Vac |
* Specification subject to change
